    Carbon Steel Copper Aluminum Elliptical And Spiral Fined Tube 12m 6m 4m

    Ask Lasest Price
    Brand Name : Zhengde Metal
    Price : negotiable
    Payment Terms : Western Union, MoneyGram, T/T
    MOQ : 3tons
    Supply Ability : 65000 Tons/Month
    • Product Details
    • Company Profile

    Carbon Steel Copper Aluminum Elliptical And Spiral Fined Tube 12m 6m 4m

    Product Description

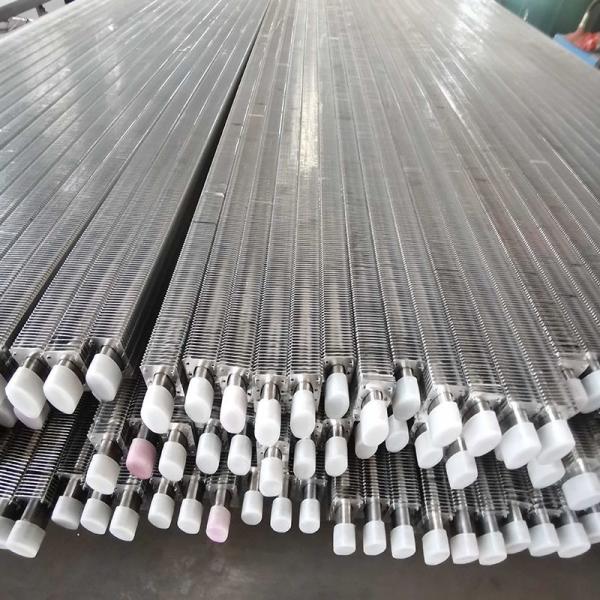

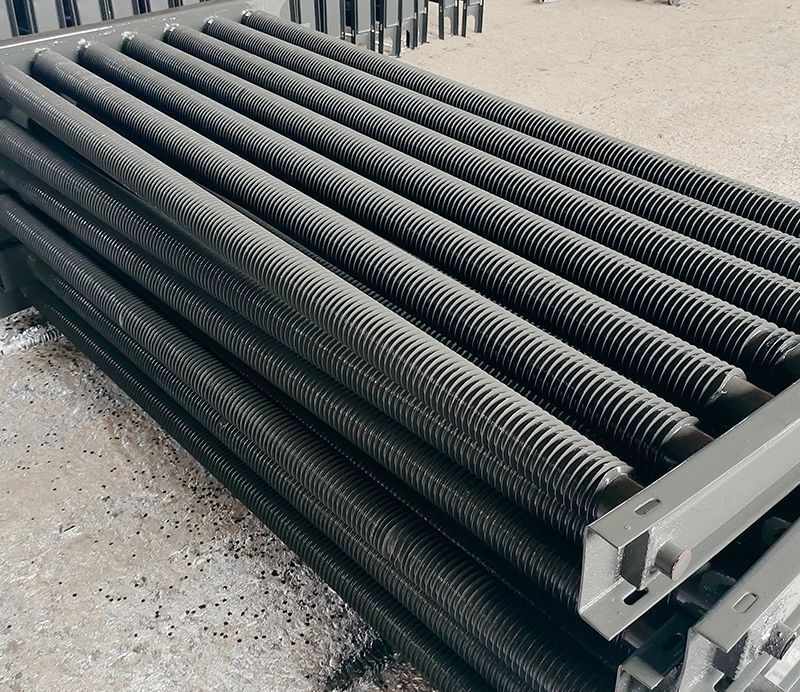

    Carbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined TubeZhengde Elliptical finned tube is a heat exchange element composed of base tube elliptical tube and external fin. Common ones include elliptical rectangular finned tube, elliptical oval finned tube, elliptical circular finned tube, spiral elliptical flat tube, elliptical H-shaped finned tube, etc. Elliptical finned tube is gaining attention due to its superior performance compared with circular finned tube. Elliptical finned tube has been widely used in industrial fields such as ethylene and oil refining. Elliptical finned tube is used in heat exchange equipment as a high-efficiency heat exchange element. The outer flow resistance of the tube is small and the heat exchange efficiency is high, which makes the heat exchange equipment compact, lightweight, efficient and miniaturized.

    NO.Fin tube technical parameters
    Outer diameterRoot diameterthe inside diameter ofWall thicknessWing heightWing spanThick wing topThick wing rootAverage wing thicknessweightSurface AreaSurface area per unit weightWing ratio
    DWD0dδhSSdSgS'GFAβ
    mmmmmmmmmmmmmmmmmmKg/mm2/mm2/Kg/
    15032263.0961.53.32.46.480.43070.066474.286425159
    2253.56.780.06353
    3244.07.070.06092
    456263.01291.63.42.56.090.43340.071174.313296178
    5253.56.390.06782
    6244.06.670.06498
    76238313.51291.83.62.77.470.49280.065974.130070399
    8304.07.830.06294
    9294.58.190.06017
    10313.512116.730.42530.063193.564364733
    11304.07.090.05999
    12294.57.440.05716
    13313.512136.210.37830.060923.170465974
    14304.06.580.05749
    15294.56.930.05459
    166642344.01298.960.53390.059594.048377313
    17434.59.360.05704
    18425.09.750.05476
    19344.012118.090.46120.057013.497118593
    20434.58.490.05432
    21425.08.880.05194
    22344.012137.490.41100.054873.116469518
    23434.57.890.05209
    24425.08.280.04964
    257955344.012138.660.53610.061913.104226983
    26434.59.220.05815
    27425.09.770.05487
    Note: The materials include 20g, 20G, 12Cr1MoVG, 12CrMo, 15CrMo, 1Cr19Ni9, ND steel, etc. Other materials can be customized
    Our Advantages
    Carbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined Tube
    Carbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined Tube
    Fin tube type
    There are many types of fin tubes. According to the different installation positions of the fins, there are two types of fin tubes: internal fin tubes and external fin tubes. Among them, external fin tubes are more commonly used. According to the different fin arrangement methods, there are two types of fin tubes: longitudinal fin tubes and transverse fin tubes. According to the different shapes of the base tubes, there are round fin tubes, elliptical fin tubes, flat tube fin tubes, etc.
    Characteristics of finned tubes
    (1) Compared with circular finned tubes, elliptical finned tubes are easier to achieve compact layout, which reduces the overall volume of the entire heat exchanger and thus reduces the floor space.
    (2) Due to the shape characteristics of elliptical finned tubes, the air side resistance is small, the heat transfer coefficient between fluids is increased; the thermal resistance inside the tube is relatively small, which increases the heat transfer of the fluid inside the tube.
    (3) The heat transfer area of elliptical finned tubes is larger than that of circular tubes with the same cross-sectional area. This is because the heat transfer perimeter of elliptical tubes is longer under the same cross-sectional area.
    Carbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined Tube
    Carbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined Tube
    Characteristics of finned tubes
    (4) The most commonly used elliptical finned tubes are rectangular steel fins, which have high strength, the base tube is not easy to freeze and crack in winter, and have a long service life.
    (5) Since elliptical finned tubes can be arranged more compactly, the front row of tubes has a greater impact on the rear row. The external flow resistance of the tube can be reduced by increasing the fin spacing of the rear row of tubes, but the number of tube rows should not be too large.
    Carbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined Tube
    Quality first: production and inspection in strict accordance with production standards;
    Price advantage: discounts based on real market prices;
    Transaction security: There will be no loss of customer funds;
    After-sales guarantee: the customer's problem is our problem;
    Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.
    Detailed Photos

    Carbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined TubeCarbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined Tube
    Carbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined Tube

    Packaging & Shipping

    Carbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined Tube

    Company Profile

    Carbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined TubeShandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
    Carbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined Tube

    Certifications

    Carbon Steel Copper Aluminum Fined Tube Elliptical and Spiral Fined Tube
